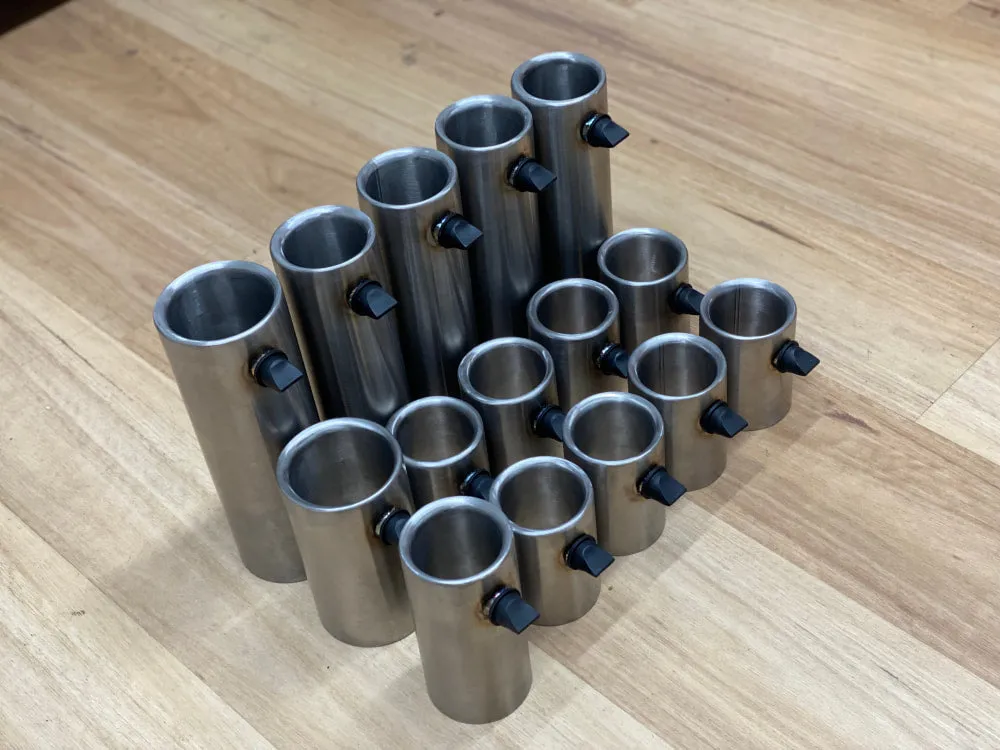

Stainless Steel 4x4 Snorkel Water Diverter from Meredith Metalworks

HOW IT WORKS

This 4x4 snorkel water diverter uses the intake air pressure within the snorkel to create a downwards motion. 98% of the water is forced to the walls and forced downwards into the water diverter and out of the opening.

WHATS IS IT USED FOR?

Meredith's water diverter is made to relieve the amount of water getting to your airbox.

HOW IT WORKS STATIONARY

DUCK BILL VALVE: Your car runs off positive pressure and zero pressure, when your car is on you have a positive pressure which means the valve is open which allows the water to be released via duck bill valve. When your car is off the duck bill is closed but as it is made of silicone, water will still be able to push it's way through the opening. The shape of the duckbill valve makes water unable to enter back through the valve opening if submerged.

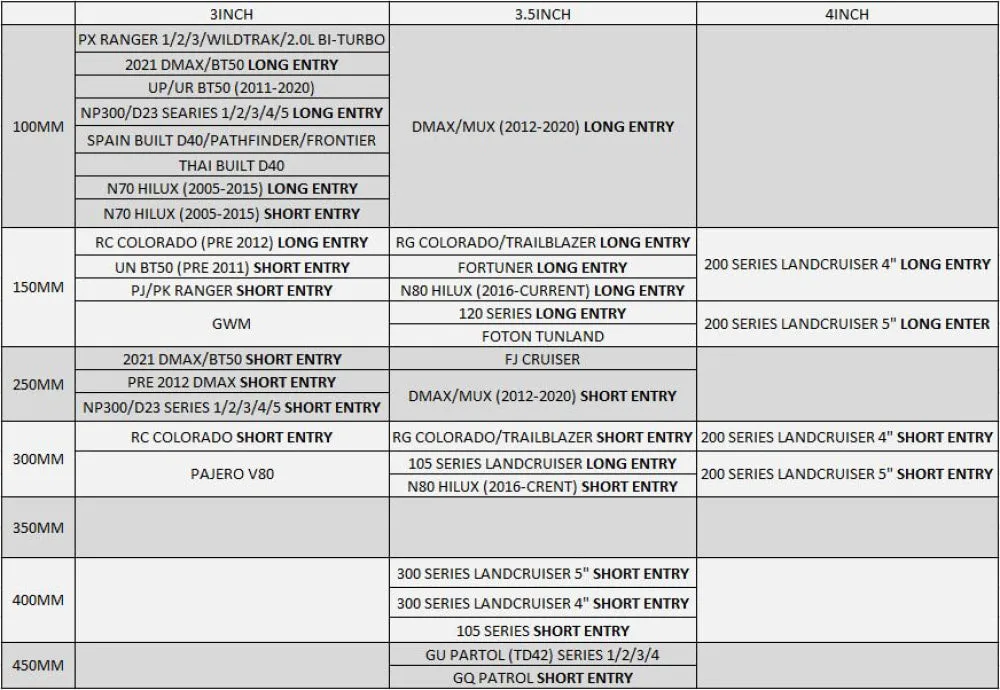

If you have another companies, or a old snorkel from us please contact us to confirm the water diverter you need.

WHERE DOES IT FIT?

The water diverter fits inside the inner guard between the snorkel and airbox, replacing the straight pipe section.
